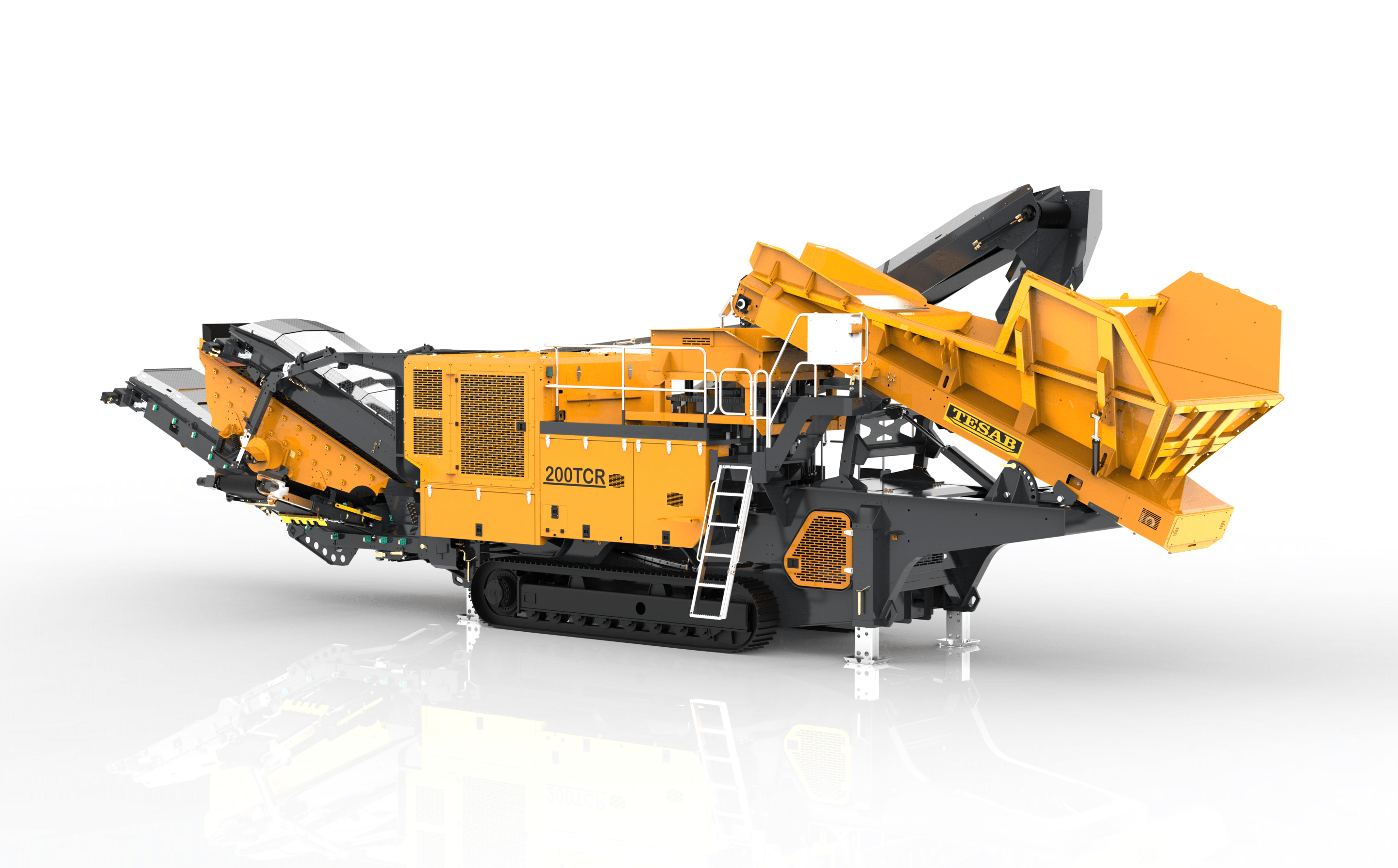

Tesab 200TCR recirculating cone crusher
The 200TCR combines the versatility of the 200TC with a full screening and reirculating system
The Tesab 200TCR recirculating cone crusher merges the adaptability of the 200TC Cone Crusher with a comprehensive screening and recirculation system, enabling operators to generate a high quality crushed and screened end product using a single machine. Both the 200TC & 200TCR come equipped with advanced features including load and material level monitoring, complete hydraulic push-button Closed Side Setting (CSS) adjustment, and a thorough hydraulic relief system.
Features
- 200 Tracked Cone - CAT C9.3B or CAT C9 Tier 3 engine
- integrated hopper with folding rear door
- i-beam plate fabricated chassis construction
- large gap between crusher discharge and main conveyor feedboot
- open chassis design for ease of maintenance - fast setup time
Performance Specifications
| Production Rate* | Feed Opening | Feeder Belt Width | Engine Size | Pre Screen |
| up to 250 TPH | 914 mm | 1050 mm |
360 Hp (268 kW) |
* Depending on application
Dimension Specifications in mm
| For transportation | Main conveyor | Weight | Crushing chamber | |||
| Height | Width | Length | Stockpile Height | Belt Width | in kg | max. Feed Opening |
| 3.400 | 2.650 | 14.590 | 3.314 | 1.200 |
52.000 |
185 |
