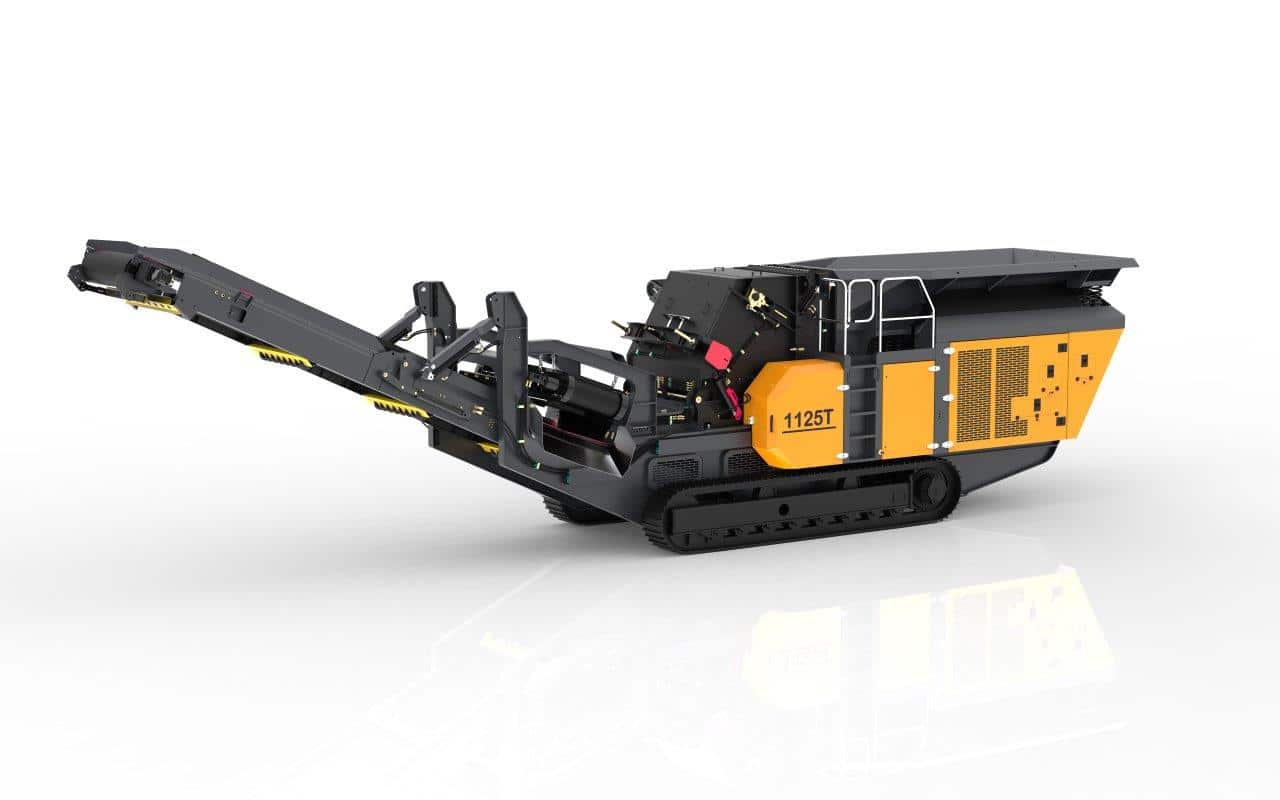

Tesab 1125T track-mounted impact crusher
Bringing the productivity of an 1125mm impactor to a compact footprint for maximum power and maneuverability.
The 1125T is in a class of its own, bringing the productivity of an 1125mm impact crusher to a compact footprint for maximum power and maneuverability. The crusher's design has ease of access in mind, with an excellent layout for operation, maintenance and service. Advanced clutch technology delivers reduced fuel consumption, and less maintenance while increasing safety and productivity.
With its simplified controls and efficient hydraulics, the 1125T heavy duty track mounted crusher is sure to make an impact across a variety of materials and applications.
Features
- 1050mm diameter x 1125mm wide impact crusher
- 375Hp (280kW) engine
- Crawler Tracks
- Open chassis design for ease of maintenance
- I-beam plate fabricated chassis construction
- Integrated hydraulic folding stockpiling conveyors
- Apron adjustment to suit either secondary or primary crushing
- Fast setup time
Performance Specifications
| Production Rate | Max Feed Size | Reduction Ratio | Engine Size | Prescreen |
| 350 TPH* | 375 Hp (280 kW) | Yes |
* Depending on the density of the material and settings of the crusher
Dimension Specifications in mm
| For transportation | In operation | Weight (est.) | |||
| Height | Width | Length | Width | Length | in kg |
| 3.200 | 2.650 | 11.160 | 34.800 | ||
