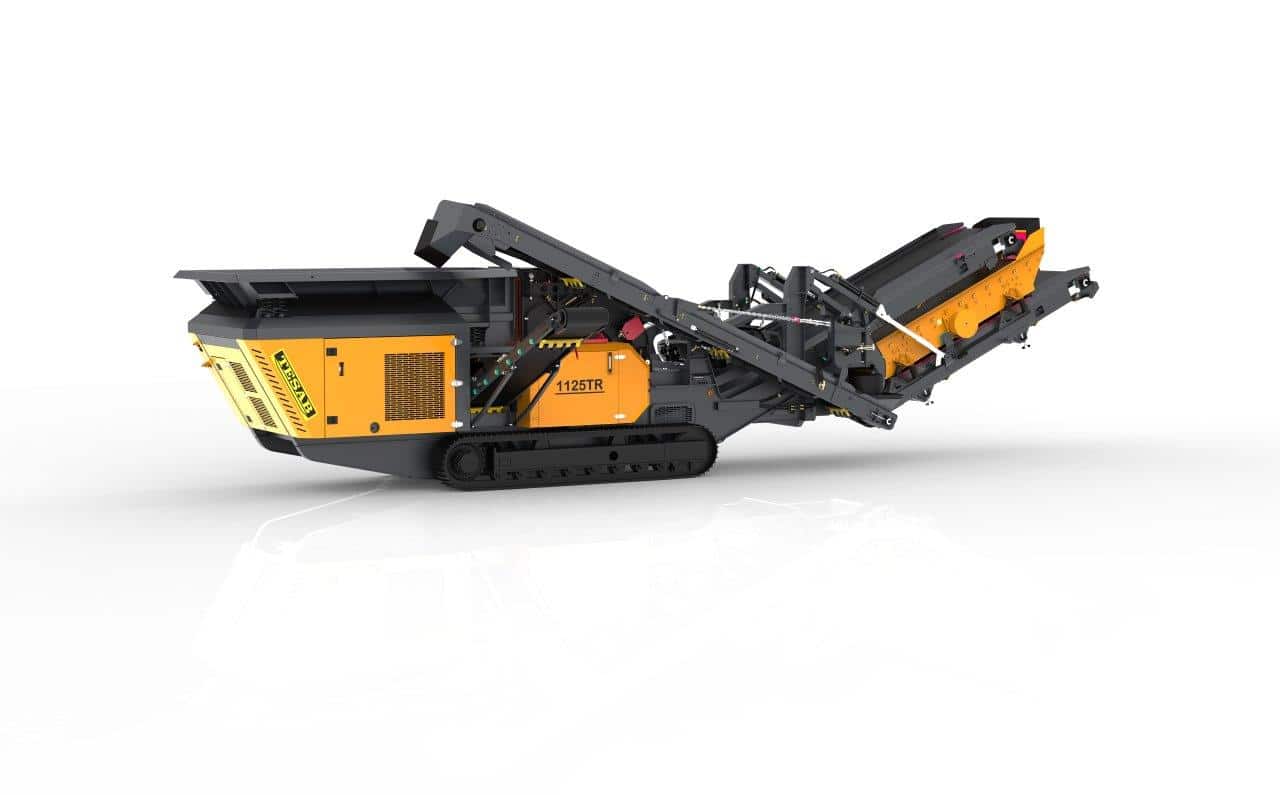

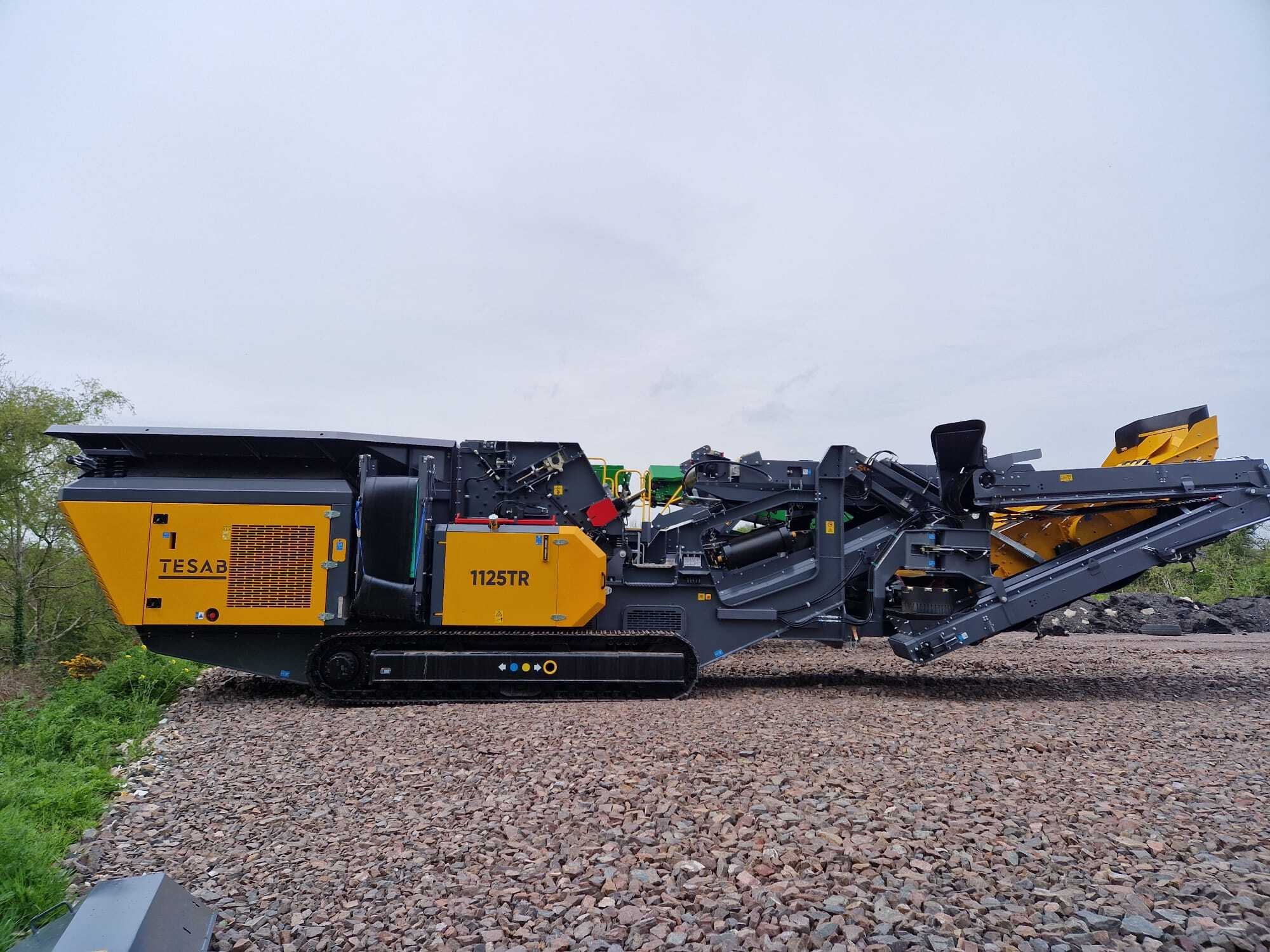

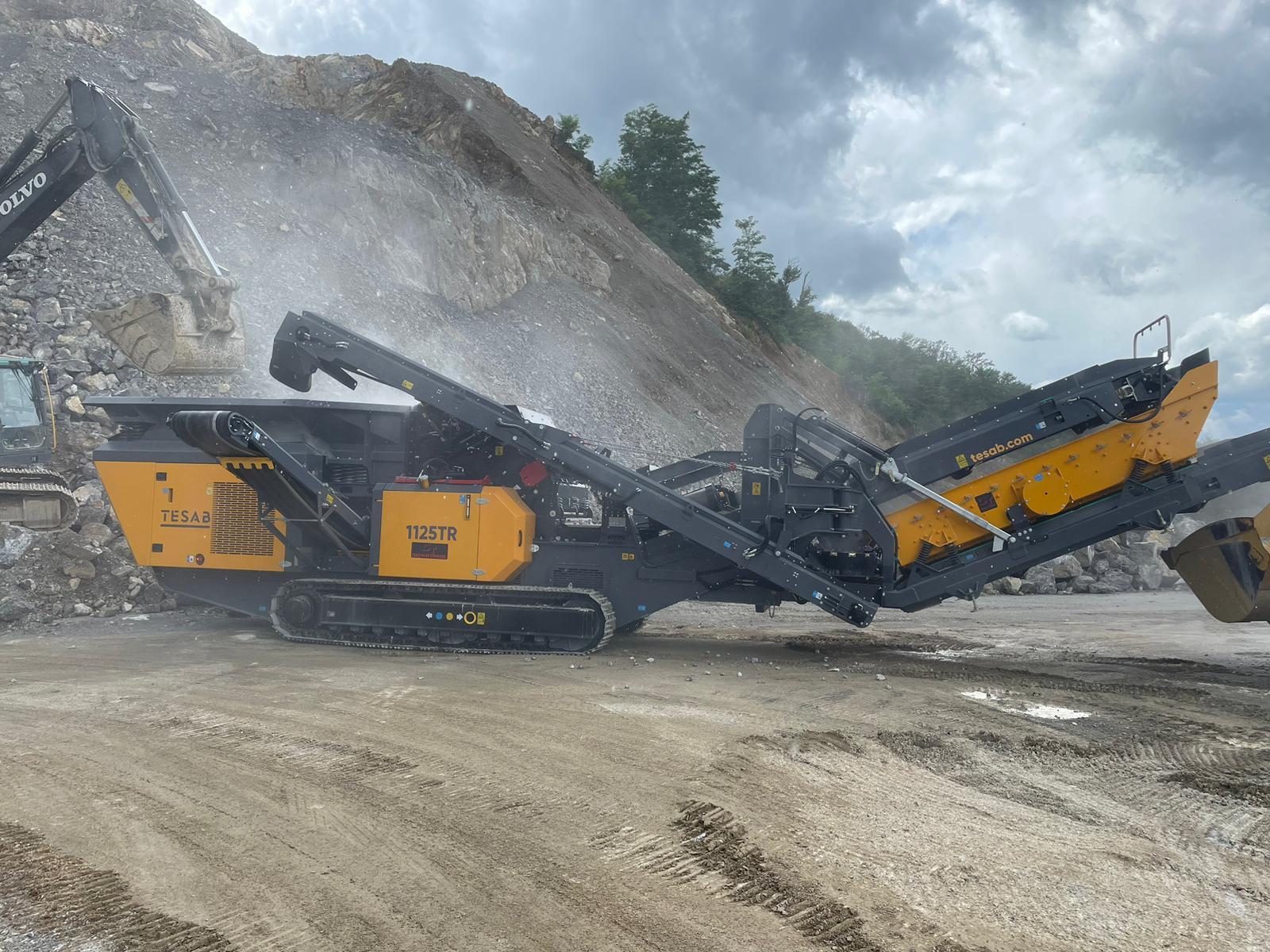

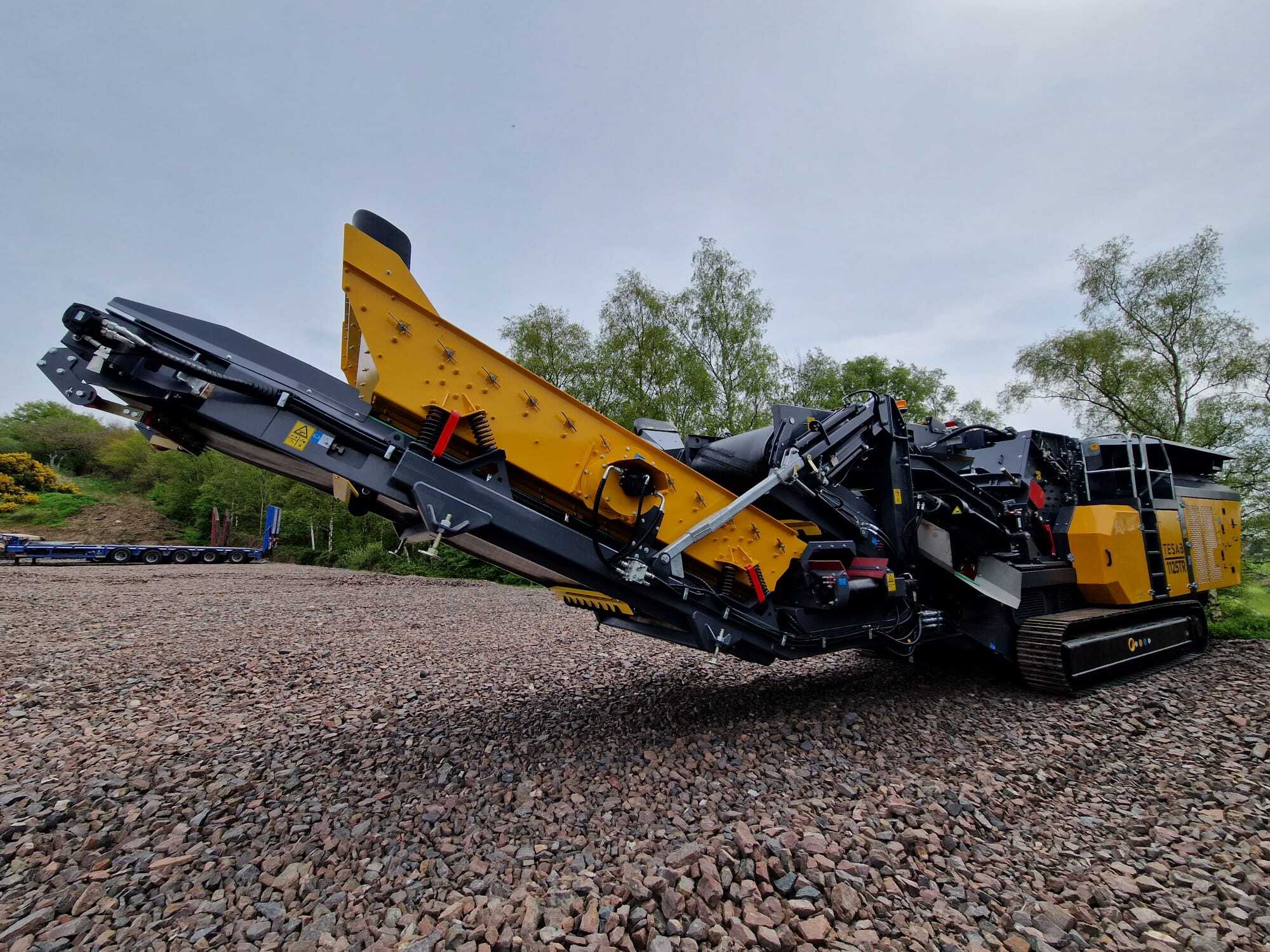

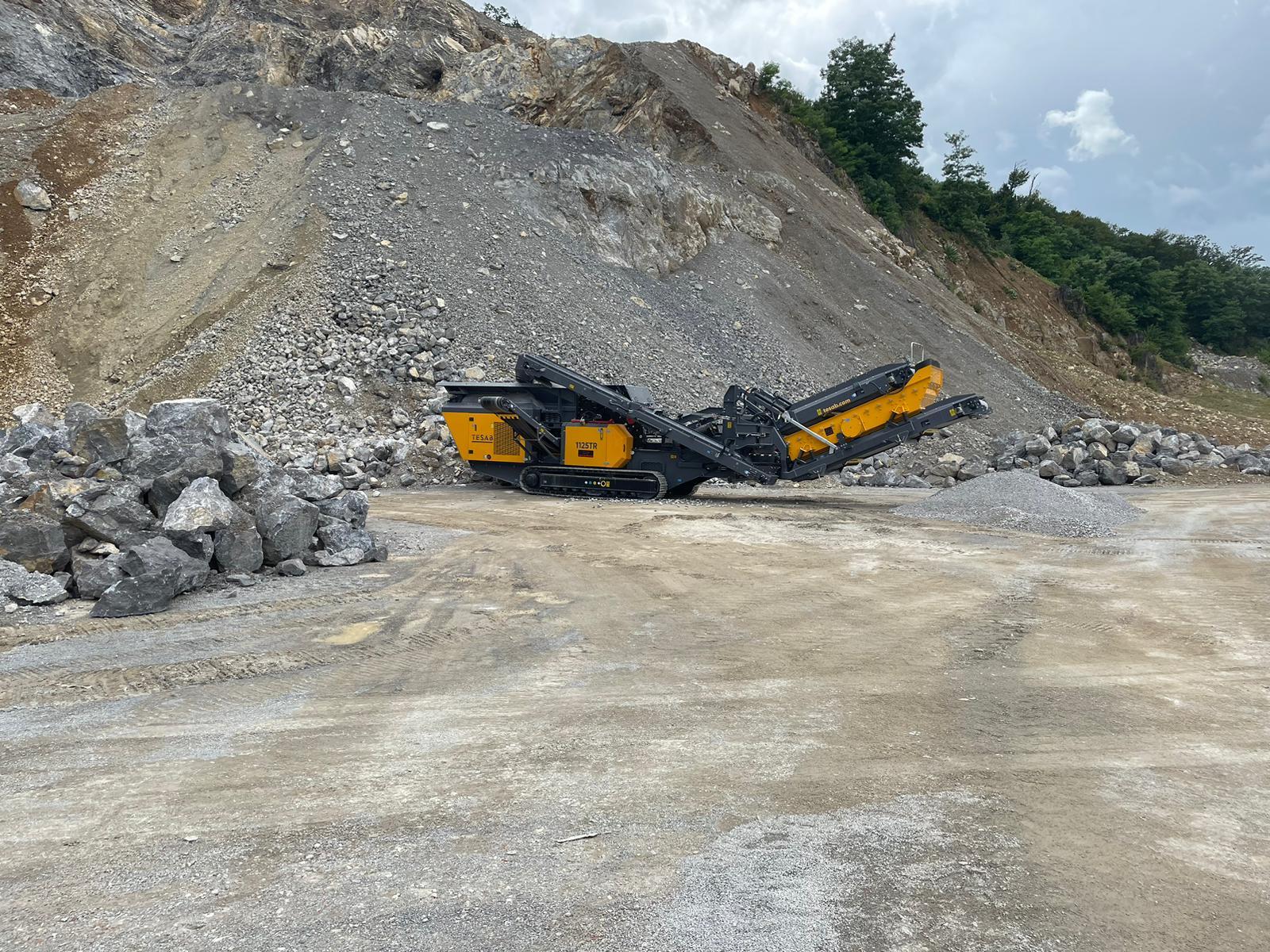

Tesab 1125TR track-mounted impact crusher
Recirculating mobile impact crusher combining mobility, power and new features to deliver the highest production across applications and materials.
The Tesab 1125TR compact recirculating impact crusher combines mobility, power and new features to deliver the highest production across applications and materials.
The 1125TR combines the heavy duty impact crushing of the 1125T with the versatility of a recirculation system to combine the productivity of an 1125mm impactor with screening efficiency - all in a compact and highly mobile footprint for maximum power and maneuverability. The radial conveyor can swing out for additional stockpiling. Like the 1125T, the crusher’s design has ease of access in mind, with an excellent layout for operation, maintenance and service.
Features
- 1050mm diameter x 1125mm wide impact crusher
- Aggressive Blow Bar design with larger contact area for high capacity crushing
- Asymmetric Feeder integrated into single feeder/hopper configuration
- Tough-Flex® heavy duty conveyor belt delivers lasting performance
- Chamber Safety Arm for secure access to impact chamber
- Simplified Hydraulics and Direct Drive Crusher
- Efficient and simple operation
- 3660mm x 1525mm Screenbox
Performance Specifications
| Production Rate | Max Feed Size | Reduction Ratio | Engine Size | Prescreen |
| 200 TPH* | 375 Hp (280 kW) | Yes |
* Depending on the density of the material and settings of the crusher
Dimension Specifications in mm
| For transportation | In operation | Weight (est.) | |||
| Height | Width | Length | Width | Length | in kg |
| 3.200 | 3.000 | 15.798 | 41.000 | ||
