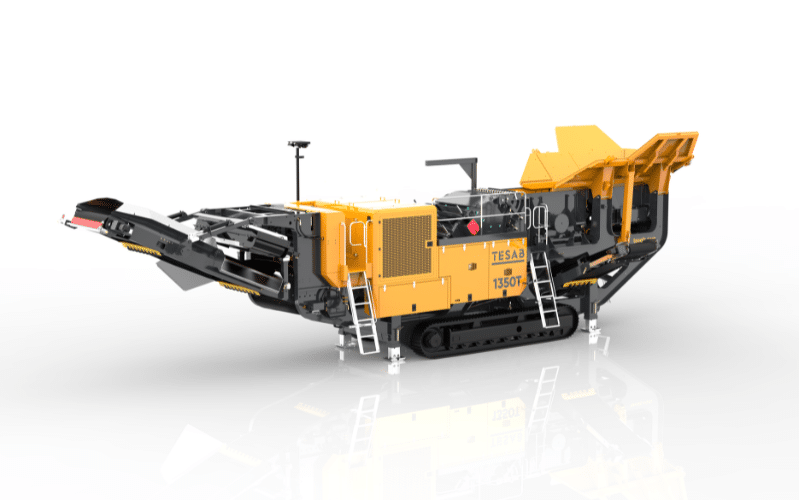

Tesab 1350T track-mounted impact crusher
Designed with durability, power and ease of use in mind.
The 1350T Impact crusher continues to bring high quality and high production capacity to Tesabs mobile impactor applications.
The 1350T has been designed with durability, power and ease of use in mind. New features include open chassis for ease-of-access, optional full length main conveyor or optional underpan under the crushing chamber conveyor, hydraulic adjustable magnet, and a new larger double deck prescreen for more efficient fines removal. Main and side conveyors are now wider to accommodate a larger volume of prescreen discharge material, and to allow for better discharge from the crushing chamber.
The 1350T’s versatility and upgraded design makes it ideal for some of the toughest applications worldwide, including asphalt recycling, concrete recycling, rock crushing, construction and demolition.
Features
- 1200mm diameter x 1350mm wide impact crusher
- 510Hp (380kW) engine
- Integrated hydraulic folding hopper
- Open chassis design for ease of maintenance
- I-beam plate fabricated chassis construction
- Integrated hydraulic folding stockpiling conveyors
- Vibrating feeder under crusher discharge
Performance Specifications
| Production Rate | Max Feed Size | Reduction Ratio | Engine Size | Prescreen |
| 500 TPH* | 510 Hp (380 kW) | Yes |
* Depending on the density of the material and settings of the crusher
Dimension Specifications in mm
| For transportation | In operation | Weight (est.) | |||
| Height | Width | Length | Width | Length | in kg |
| 3.600 | 3.000 | 15.857 | 52.900 | ||
