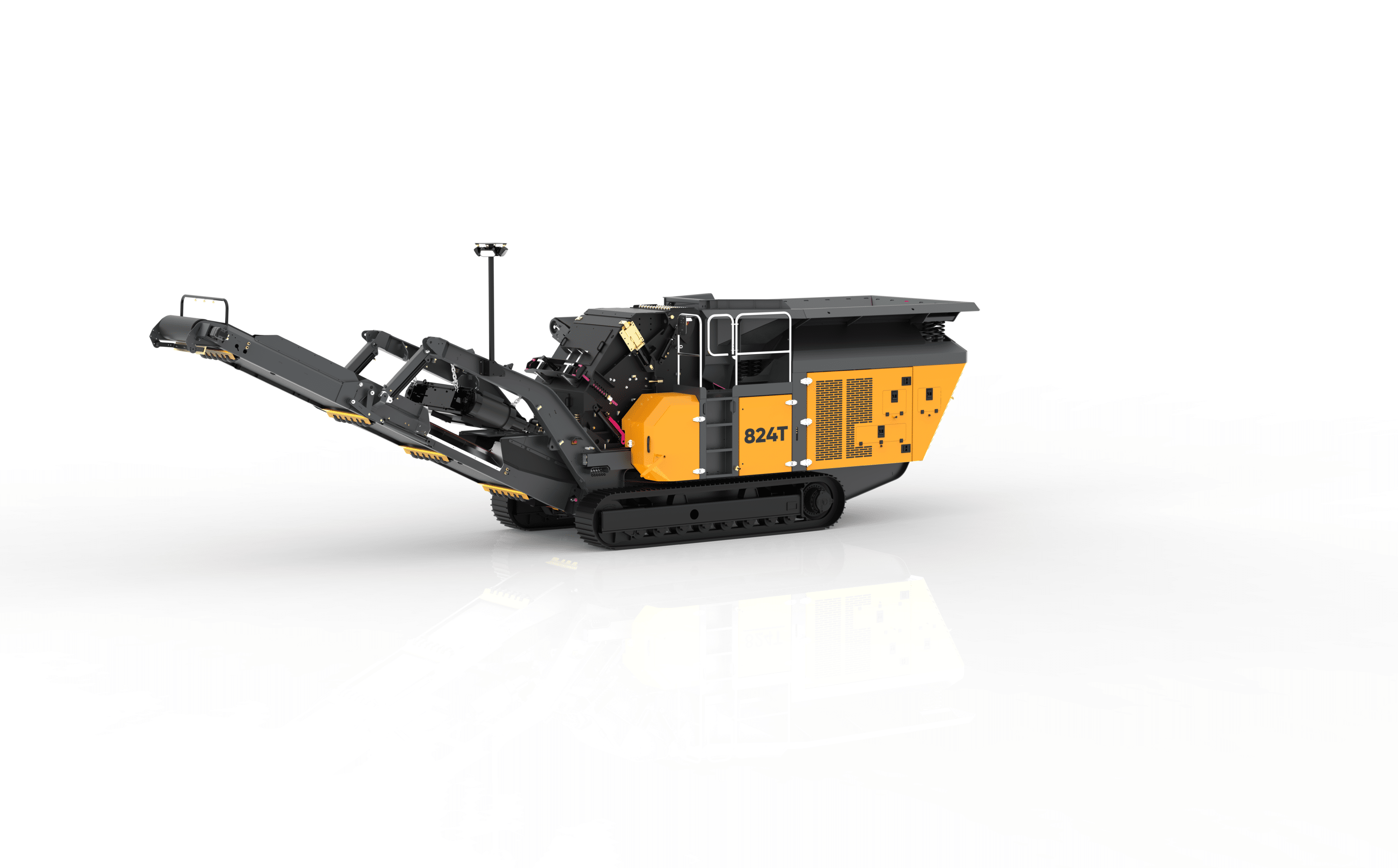

Tesab 824T track-mounted impact crusher
Compact, mobile impact crusher suited particularly to construction and demolition recycling, asphalt recycling, and aggregates
This versatile. mobile crusher is able to nimbly move around in small spaces, and continue moving while crushing. The 824T’s small footprint is uniquely suited to the demolition and asphalt recycling, aggregates and smaller scale construction projects. Less than 2.5m wide, the crushers can be transported easily from site to site.
The new line boasts flexibility as well, not only can the 824T continue crushing while moving, it can convert to a recirculating impactor in just a few hours.
Features
- 900mm diameter x 820mm wide impact crusher
- 252Hp (188kW) engine
- Crawler Tracks
- Open chassis design for ease of maintenance
- I-beam plate fabricated chassis construction
- Integrated hydraulic folding stockpiling conveyors
- Apron adjustment to suit either secondary or primary crushing
- Fast setup time
Performance Specifications
| Production Rate | Max Feed Size | Reduction Ratio | Engine Size | Prescreen |
| 200 TPH* | 252 Hp (188 kW) |
* Depending on the density of the material and settings of the crusher
Dimension Specifications in mm
| For transportation | In operation | Weight (est.) | |||
| Height | Width | Length | Width | Length | in kg |
| 2.980 | 2.490 | 9.320 | 23.600 | ||
