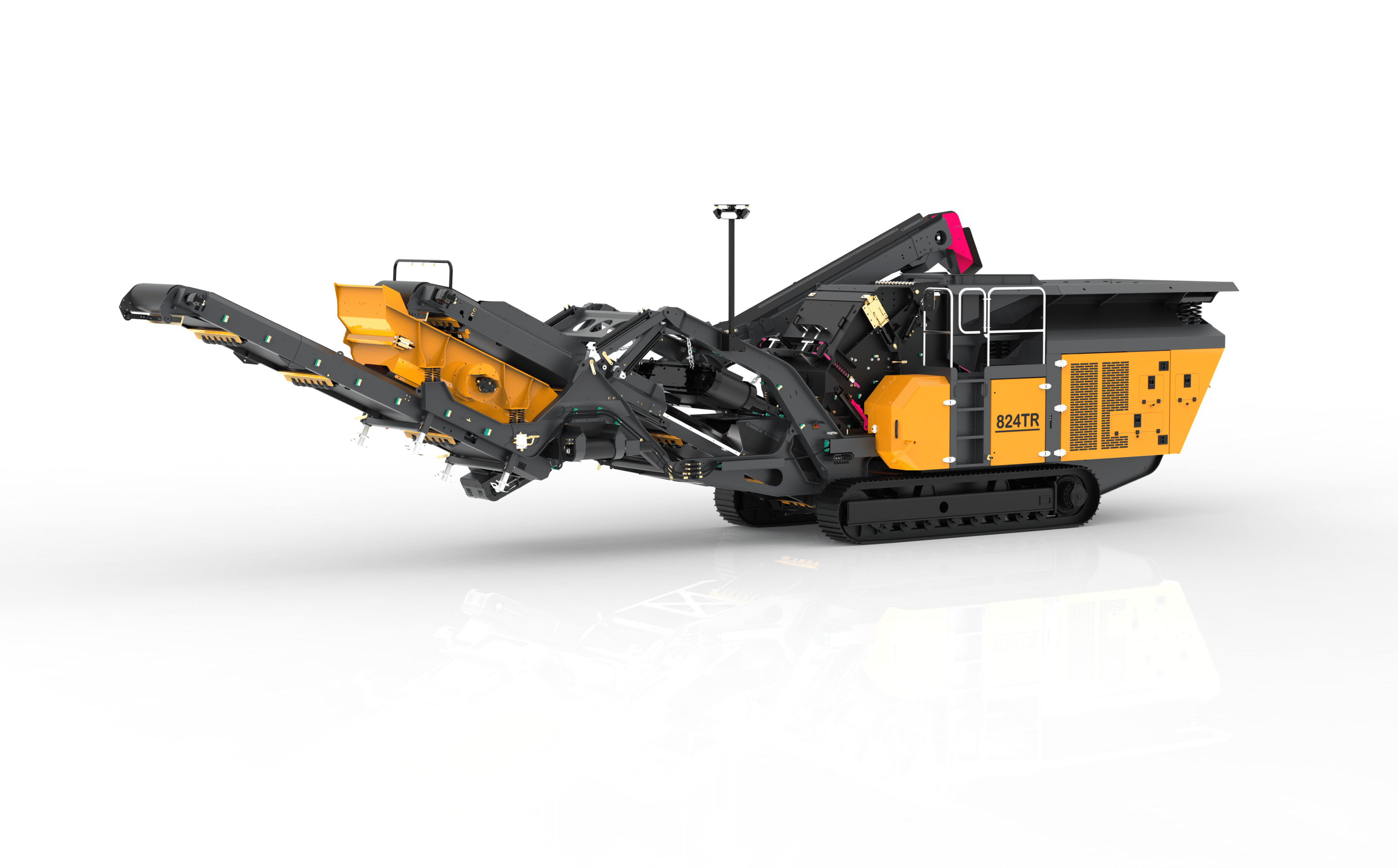

Tesab 824TR track-mounted impact crusher

Recirculating Impact Crusher combining a full screening and recirculating system

The Tesab 824TR recirculating Impact Crusher combines the productivity of our 824T with the versatility of a full screening and recirculating system, allowing operators to produce a crushed and screened final product with one machine.


  • 900mm diameter x 820mm wide impact crusher
  • 252Hp (188kW) engine
  • Crawler Tracks
  • Open chassis design for ease of maintenance
  • I-beam plate fabricated chassis construction
  • Integrated hydraulic folding stockpiling conveyors
  • Apron adjustment to suit either secondary or primary crushing
  • Fast setup time

Performance Specifications

Production Rate Max Feed Size Reduction Ratio Engine Size Prescreen
200 TPH*     252 Hp (188 kW)

* Depending on the density of the material and settings of the crusher

Dimension Specifications in mm

For transportation In operation Weight (est.)
Height Width Length Width Length in kg
3.060 2.550 14.020     26.300
