Tesab 600i track-mounted jaw crusher

The Tesab 600i provides contractors with a highly portable option while meeting all production expectations.

The 600i Jaw Crusher continues Tesab’s focus on quality, durability, and productivity. With heavy duty cheekplate design, 40” wide jaw and user-friendly control panel with excellent machine diagnostics, the Tesab 600i provides contractors with a highly portable option while meeting all production expectations. At 2.5 metres wide, it’s ideal for applications that require a high degree of mobility.

Maximum productivity is delivered through the enhancements to the deeper jaw box, including a faster jaw speed and a larger gap between the crusher discharge and main conveyor feedboot.

The 600i retains the core values expected in a full size Tesab Jaw Crusher, including high capacity production and heavy duty build, packaged for efficiency and mobility.

Features

  • 1016mm (40”) x 610mm (24”) single toggle jaw
  • Integrated hydraulic folding hopper
  • Integrated hydraulic folding stockpiling conveyors
  • I-beam plate fabricated chassis construction
  • Large gap between crusher discharge and main conveyor feedboot
  • Open chassis design for ease of maintenance
  • Fast setup time

Performance Specifications

Production Rate Max Feed Size Reduction Ratio Engine Size Prescreen
225 TPH* 610 mm    225Hp 167kW Yes

* Depending on the density of the material and settings of the crusher

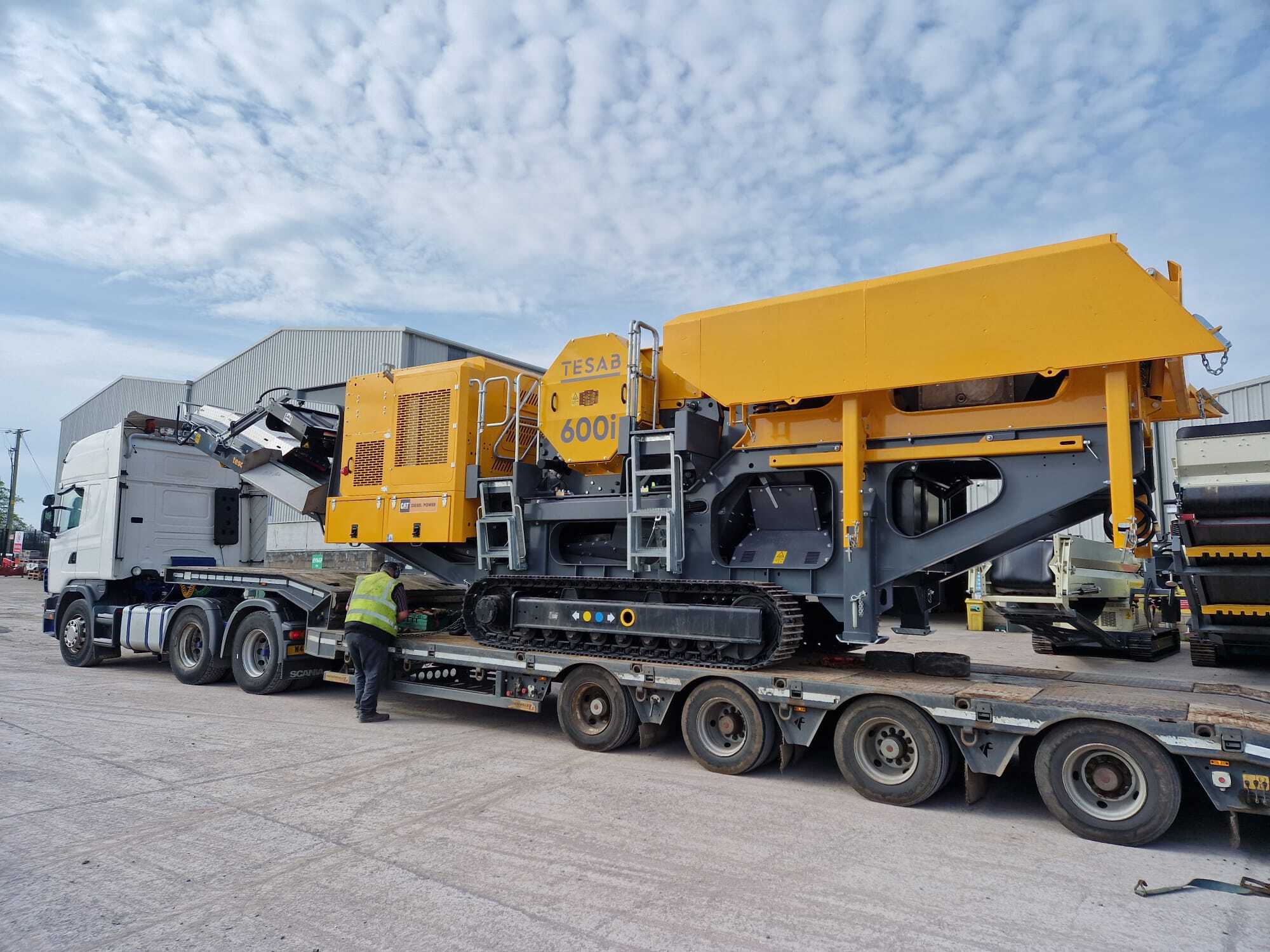

Dimension Specifications in mm

For transportation In operation Weight (est.)
Height Width Length Width Length in kg
3.200 2.500 13.780   13.640 34.600
