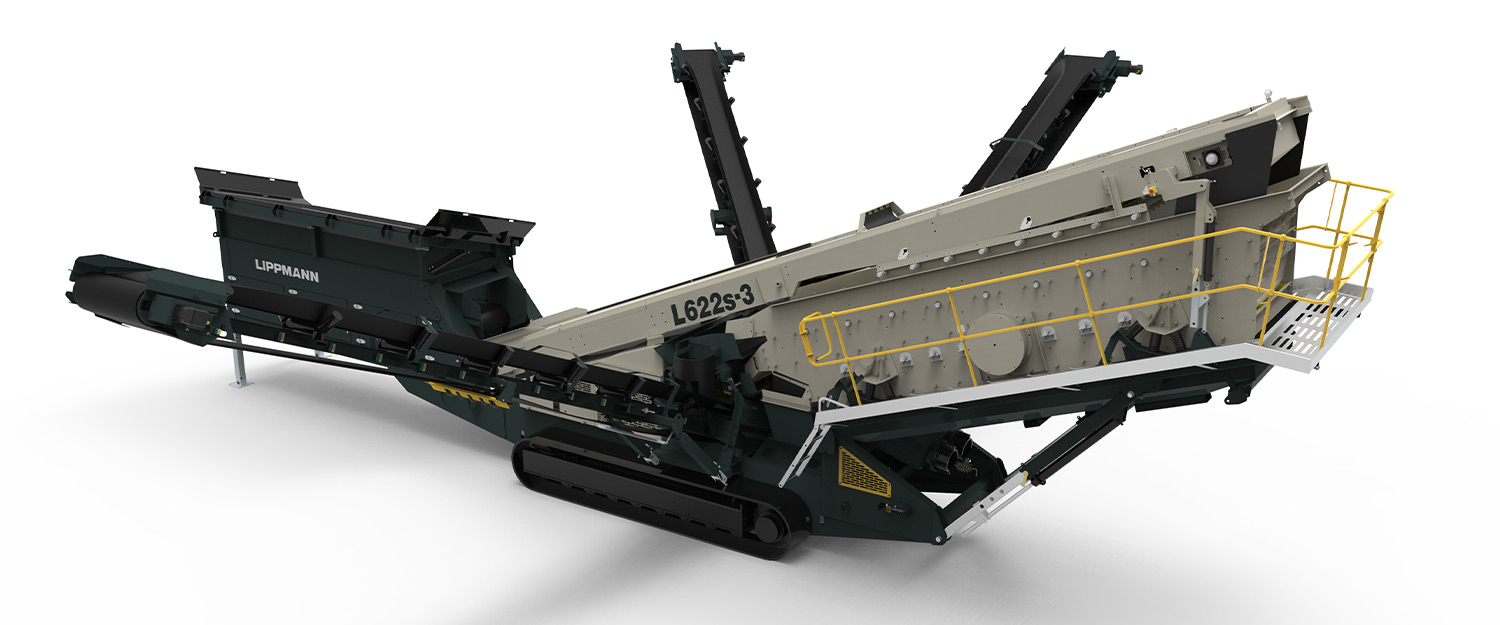

Lippmann L622s-2 and L622s-3 screens
Among the largest track-mounted mobile screens in the world
The L622s-2 and L622s-3 are positioned as two of the largest and most productive vibratory screening machines, offering greater real screening area over either the double or triple deck design. They are among the largest track-mounted mobile screens in the world. For operations needing the greatest levels of efficiency, quality, and dependability, Lippmann finishing product screens are an excellent choice.
Features
- wear plates in the chutes and hopper
- auxiliary circuit
- kit for remote speed control and start/stop
- working lights
- tough-flex belt on the feeder
- martin belt scraper
- hopper door (LF-302)
- warranty of 4 years and 6,000 hours
- engine options vary - speak with your salesperson
Performance Specifications
| Model | Hopper volume | Engine Size | Top deck | Middle deck | Bottom deck |
| L622s-2 | 8 or 10 m³ | CAT C7 (225HP) | 6.705 x 1.829 mm |
- |
6.100 x 1.829 mm |
| L622s-3 | 8 or 10 m³ | CAT C7 (225HP) | 6.705 x 1.829 mm | 6.705 x 1.829 mm |
6.100 x 1.829 mm |
| Screen angle | Adjust. speed |
| 18-25° | YES |
Dimension Specifications in mm
| For transportation | ||||
| Model | Height | Width | Length | Weight (est.) |
|
L622s-2 |
3.600 |
3.300 | 19.550 | 38.000 kg |
|
L622s-3 |
3.600 |
3.660 | 19.550 | 42.430 kg |
Find more technical specifications from the downloadable leaflet.
