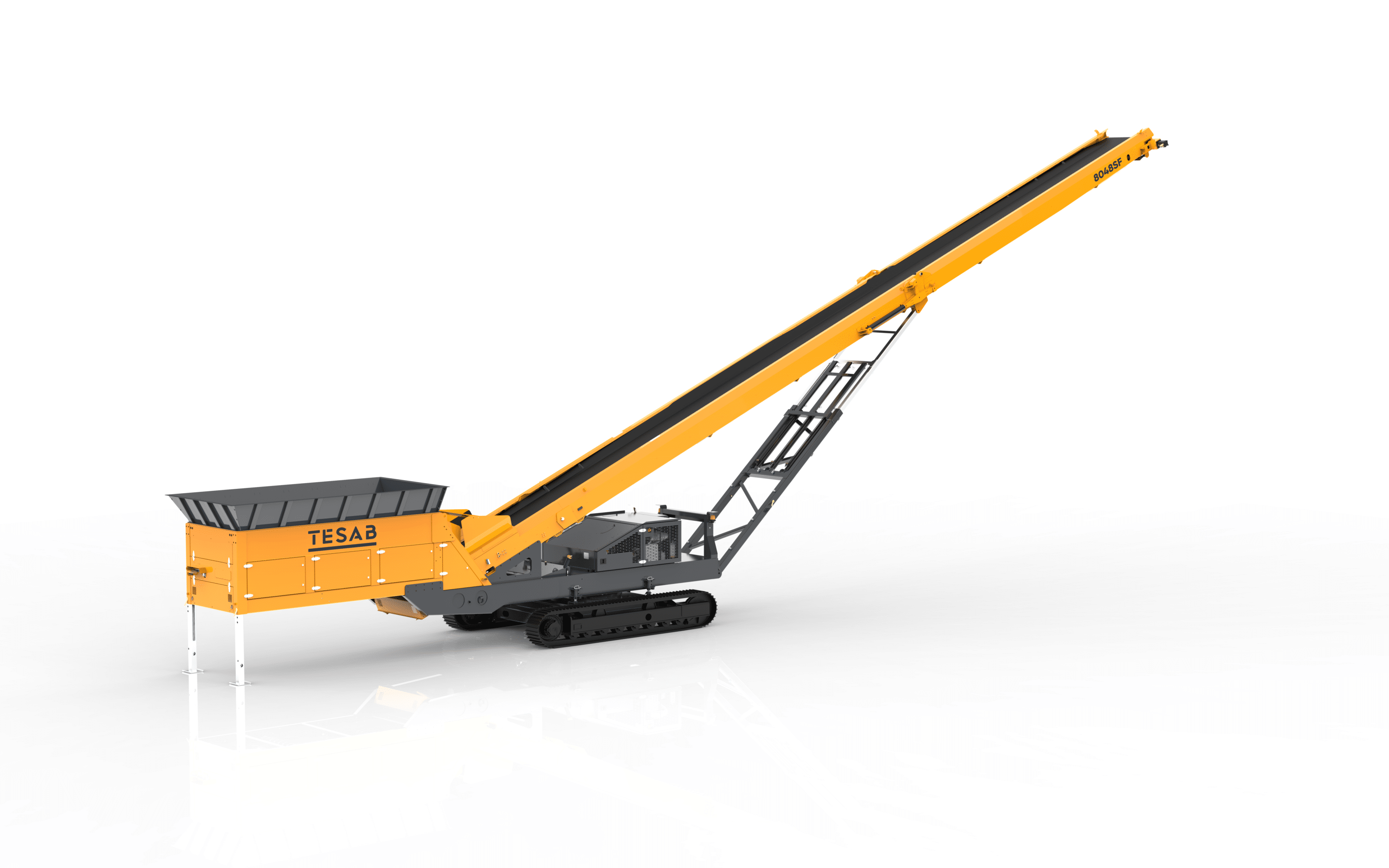

Tesab 8048SF high capacity feeder stacker

Efficient material handling solution

The Tesab 8040SF, newly designed, represents the latest advancement in feeder stacking technology. It features a spacious feeder hopper that efficiently transfers materials onto an 80ft conveyor. Crafted to enable operators to stockpile or transfer materials, it effectively eliminates the need for double handling. Moreover, this unit can be compacted for transportation on a single low loader, ensuring convenient site-to-site transport.

Features

  • 100KW (127HP) engine
  • hydraulic folding heading section for transport minimizing setup time
  • hydraulically adjustable discharge height up to 6.5m
  • user friendly hydraulic controls
  • 4m tracks for superior maneuverability and stability
  • fuel efficient hydraulics system
  • dual hydraulic main drive system
  • hopper extensions increasing capacity

> Download Tesab 8048SF feeder stacker brochure

> Make a request

Performance Specifications

Production rate* Hopper capacity Engine
up to 880 TPH 13 m3

100 kW (127Hp)

* Depending on application

Dimension Specifications in mm

For transportation In operation Weight (est.)
Height Width Length Height Length in kg
3.400 3.200 19.400 6.500 26.200 24.500 approx.
