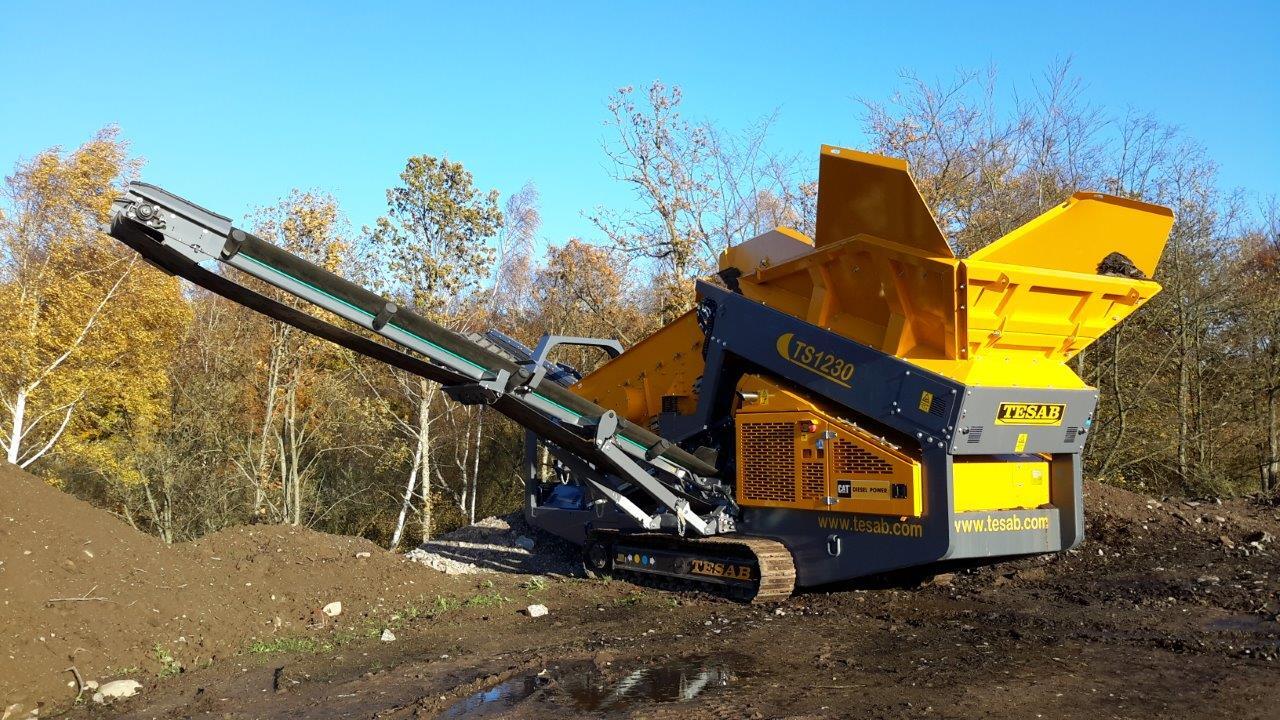

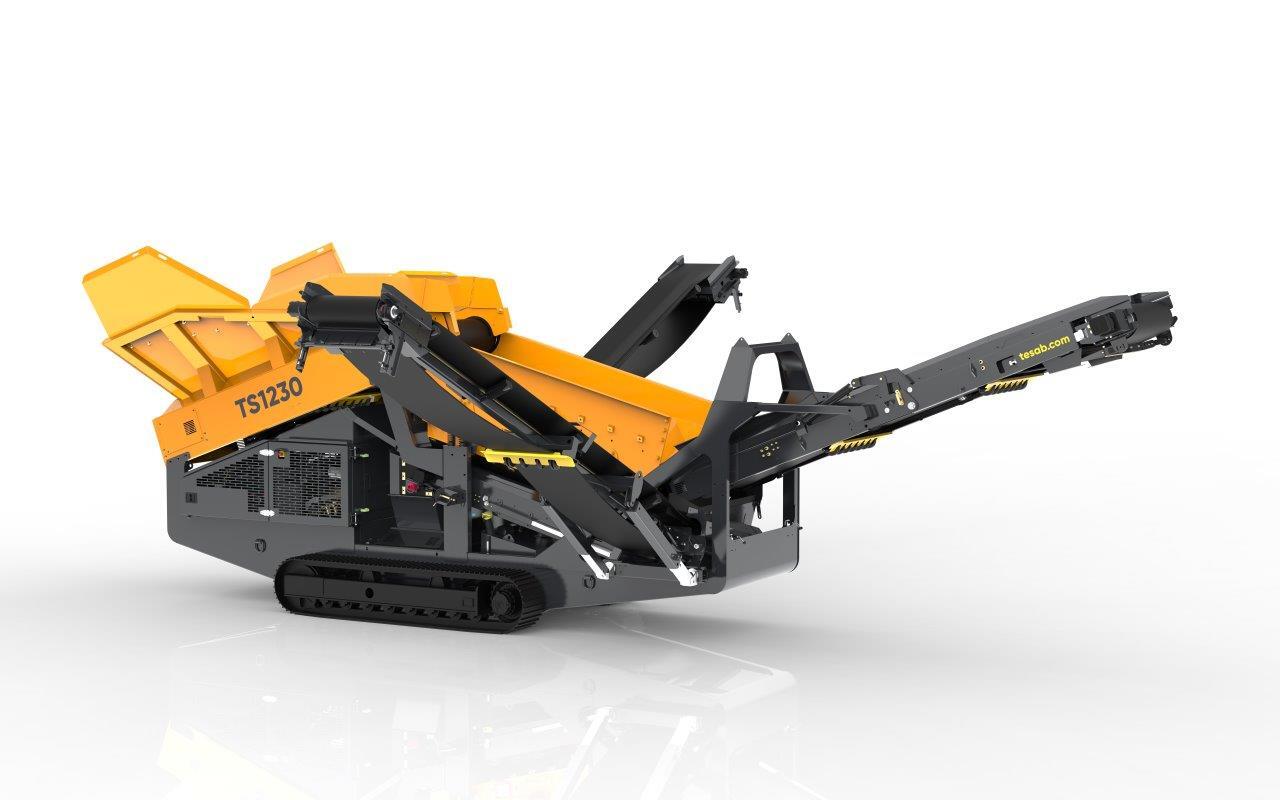

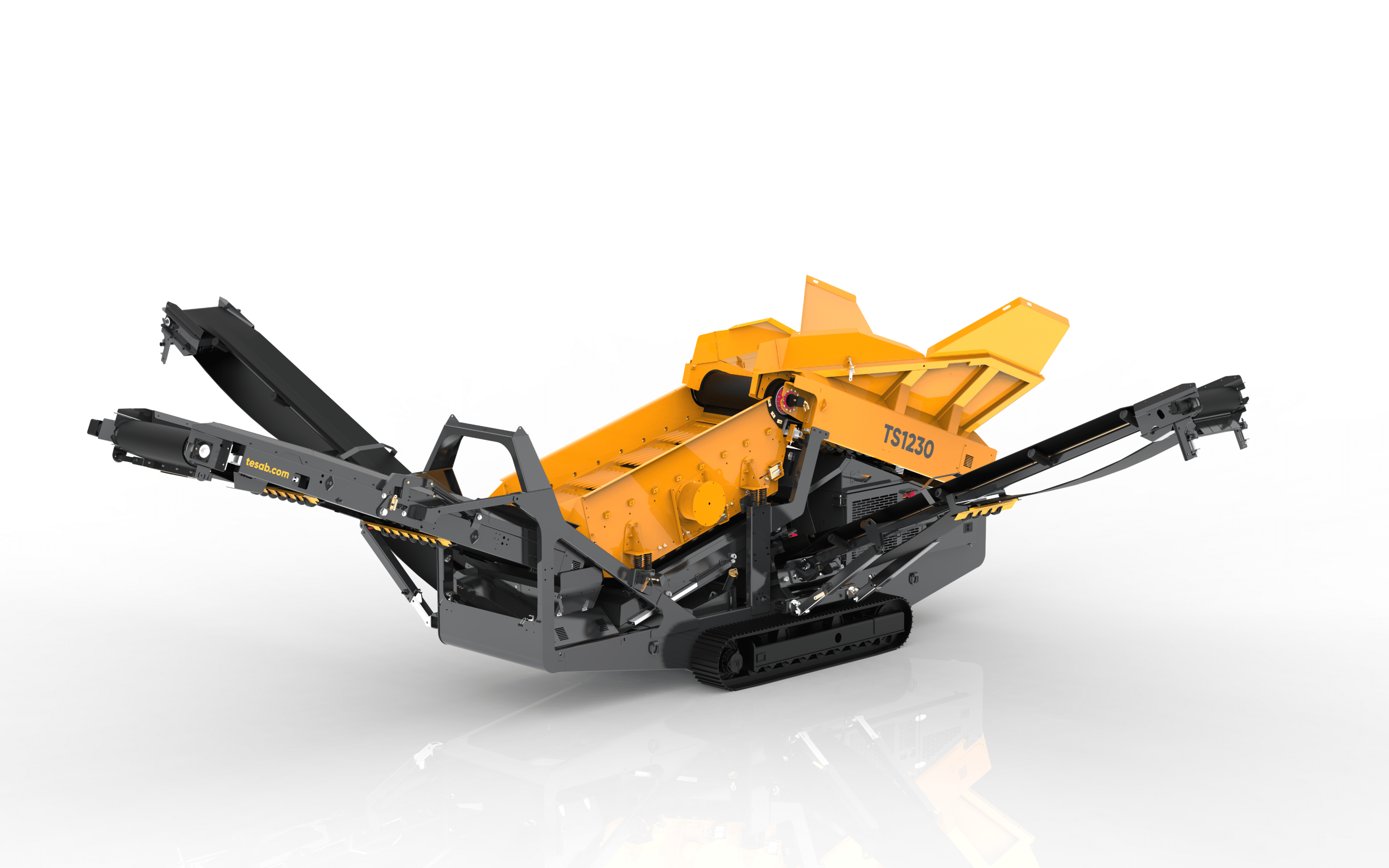

Tesab TS1230 portable scalper / reclaimer
Delivers the versatile, heavy-duty configuration that is expected of the TS-Series screeners, but can be transported easily and economically
The Tesab TS1230 provides the adaptable, robust setup typical of the TS-Series screeners, yet it can be transported conveniently and cost-effectively. Ideal for contractors dealing with numerous smaller heavy-duty construction, demolition, and remediation projects, the TS1230 offers a perfect solution. Constructed with the durability and screening efficiency Tesab is renowned for, the TS1230 incorporates high-quality components and the advanced High Energy Screenbox technology.
Features
- 2.8 m x 1.220 m (9’ x 4’) heavy duty high energy 2 bearing 2 deck screenbox
- 97 kW (130Hp) diesel engine
- integrated hydraulic folding stockpiling conveyors
- service standing room inside the powerpack
- fast on-site setup time – 10 minutes
- track mobile
Performance Specifications
| Hopper Size* | Engine Size | Conveyor Width | Screenbox | Screen Area |
| approx. 4.13 m³ | 130 Hp | 1.200 mm |
2.8 m x 1.22 m |
6.50 m2 |
* Depending on application
Dimension Specifications in mm
| For transportation | Conveyor Stockpile Height | Weight (est.) | |||
| Height | Width | Length | main | side | in kg |
| 3.200 | 9.680 | 2.500 | 3.380 | 3.560 | 15.400 |
