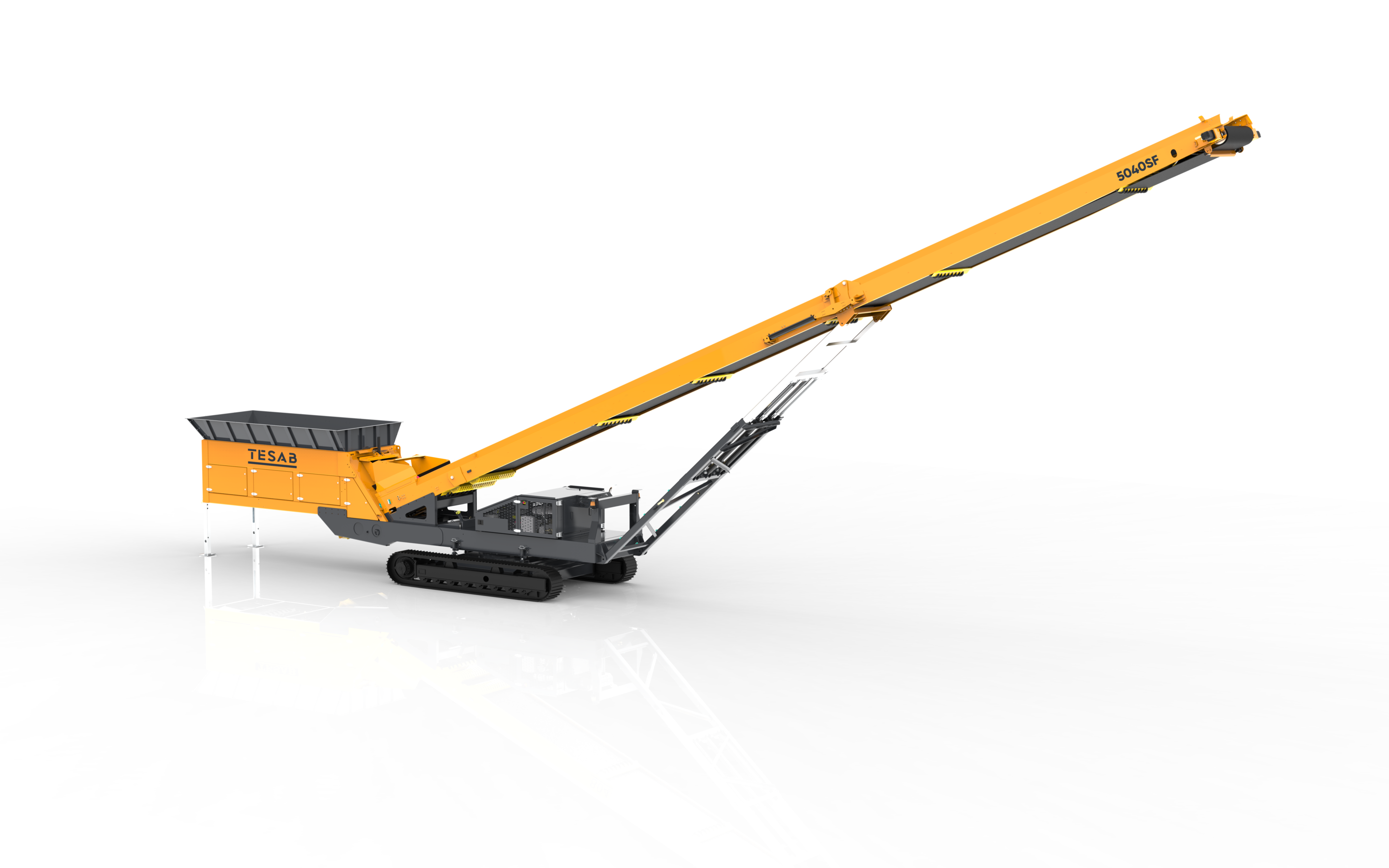

Tesab 5040SF feeding stacker
Efficient material handling solution
The newly designed Tesab 5040SF represents the latest advancement in feeder stacking technology. Featuring a 10-foot feeder hopper that seamlessly transfers materials onto a 50-foot conveyor, this system is engineered to enable operators to efficiently stockpile or transfer materials, thereby eliminating the need for double handling. Additionally, the unit can be compacted for transportation in a 40-foot high cube container, effectively reducing transport costs.
Features
- 40" (1000 mm) wide heavy-duty conveyor
- hydraulic folding heading section for transport minimizing setup time
- hydraulically adjustable discharge height up to 6.5m
- I-beam plate fabricated chassis construction
- 3.5m tracks for superior maneuverability and stability
- fuel efficient hydraulics system
- user friendly hydraulic controls
Performance Specifications
Production rate* | Stockpile height | Hopper capacity | Engine |
up to 550 TPH | 6.5 m | 6 m3 |
55 kW (74Hp) |
* Depending on application
Dimension Specifications in mm
For transportation | In operation | Weight (est.) | |||
Height | Width | Length | Width | Length | in kg |
2.600 | 2.300 | 2.600 | 6.500 | 18.900 | 14.500 approx. |
