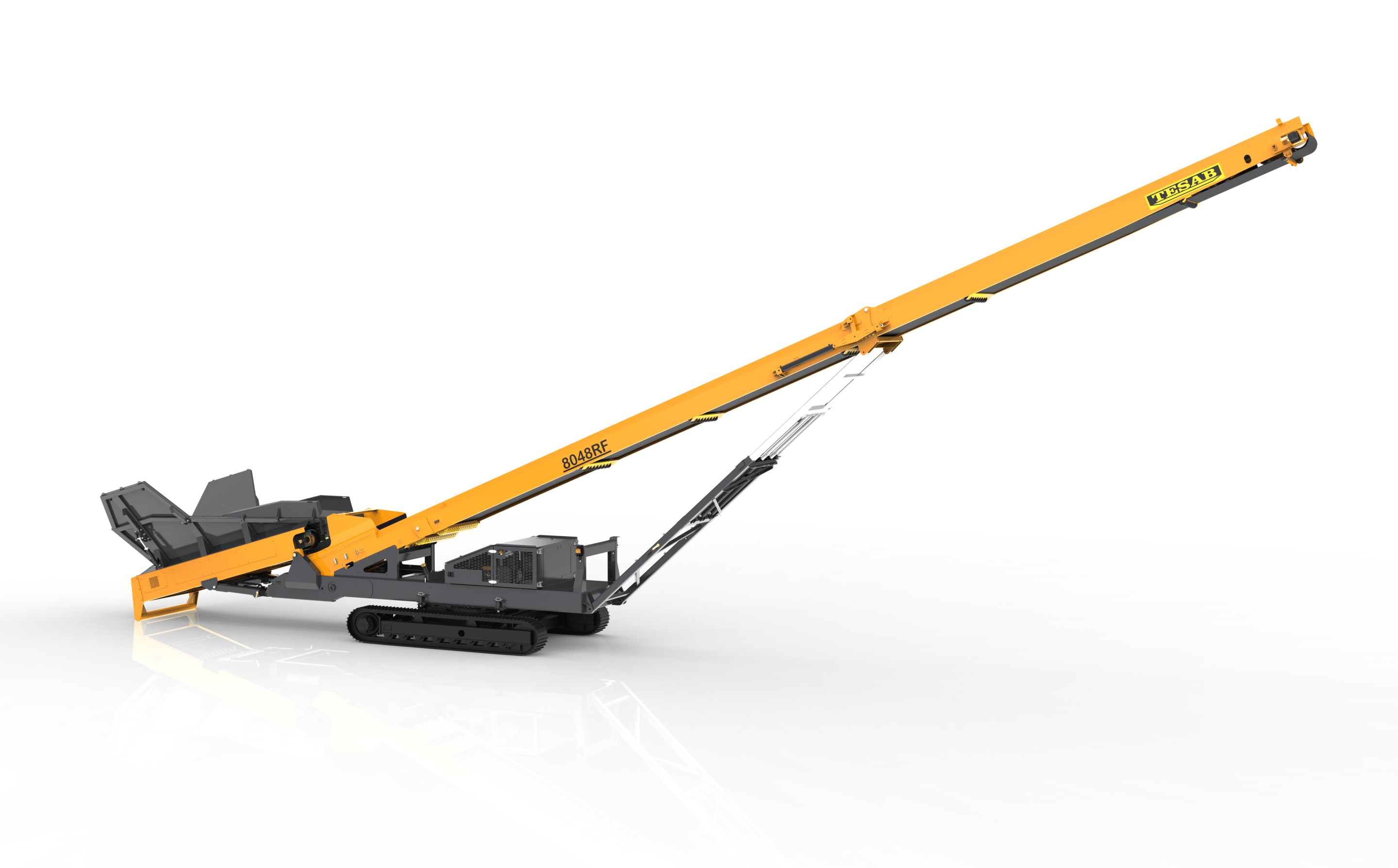

Tesab 8048RF feeder conveyor
Features a large feeder hopper that transfers material onto an 80ft conveyor
The newly designed Tesab 8048RF is the latest offering in feeder stacking technology. It features a large feeder hopper that transfers material onto an 80-foot conveyor, offering operators a rear, low-level option. Designed to enable operators to stockpile or transfer material, it eliminates the need for double handling of materials. The unit can also be compacted for transportation on a single low loader, facilitating easy site-to-site transport.
Features
- 100KW (127HP) engine
- dual hydraulic main drive system
- hydraulically adjustable discharge height up to 10m
- 4m tracks for superior maneuverability and stability
- fuel efficient hydraulics system
- user friendly hydraulic controls
- hydraulic folding heading section for transport minimizing setup time
Performance Specifications
Production rate* | Stockpile Height | Hopper capacity | Engine |
up to 880 TPH | 9.6 m | 10 m³ |
127 Hp (100 kW) |
* Depending on application
Dimension Specifications in mm
For transportation | In operation | Weight (est.) | |||
Height | Width | Length | Height | Length | in kg |
3.200 | 2.900 | 19.300 | 10.200 | 26.100 | 24.500 approx. |
