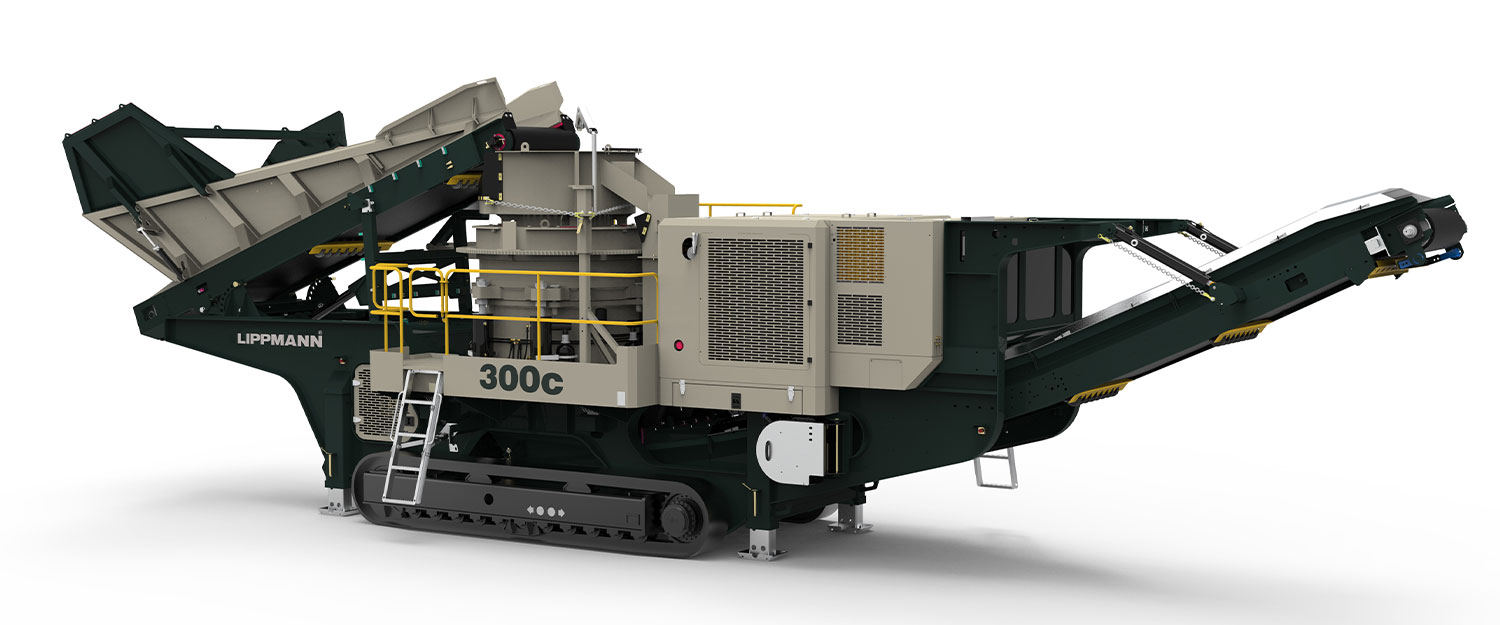

Lippmann 300c | 300c-r mobile cone crusher
Heavy-duty mobile cone crushers with an innovative material flow that maximizes capacity
The heavy duty Lippmann 300c and 300c-r cone crushers have an unique material flow that increases capacity and throughput while consistently producing a high-quality product.
Features
- hopper extensions
- wear plate in hopper
- working lights
- belt scraper
- tough-flex feeder belt
- safety beacons
- 4 year, 6000 hour warranty
- engine options vary – ask your dealer
Performance Specifications
| Production Rate | Max Feed Size | Reduction Ratio | Engine Size | Pre Screen |
| TPH* |
VOLVO D13 Tier 5 or Tier 3, 380 kW |
- |
* Depending on the density of the material and settings of the crusher
300c Dimension Specifications in mm
| For transportation | In operation | Weight (est.) | |||
| Height | Width | Length | Width | Length | in kg |
| 3.600 | 3.150 | 16.783 | 3.150 | 15.616 | 52.020 |
300c-r Dimension Specifications in mm
| For transportation | In operation | Weight (est.) | |||
| Height | Width | Length | Width | Length | in kg |
| 3.600 |
3.830 |
20.650 | 3.830 | 19.374 | 59.200 |
