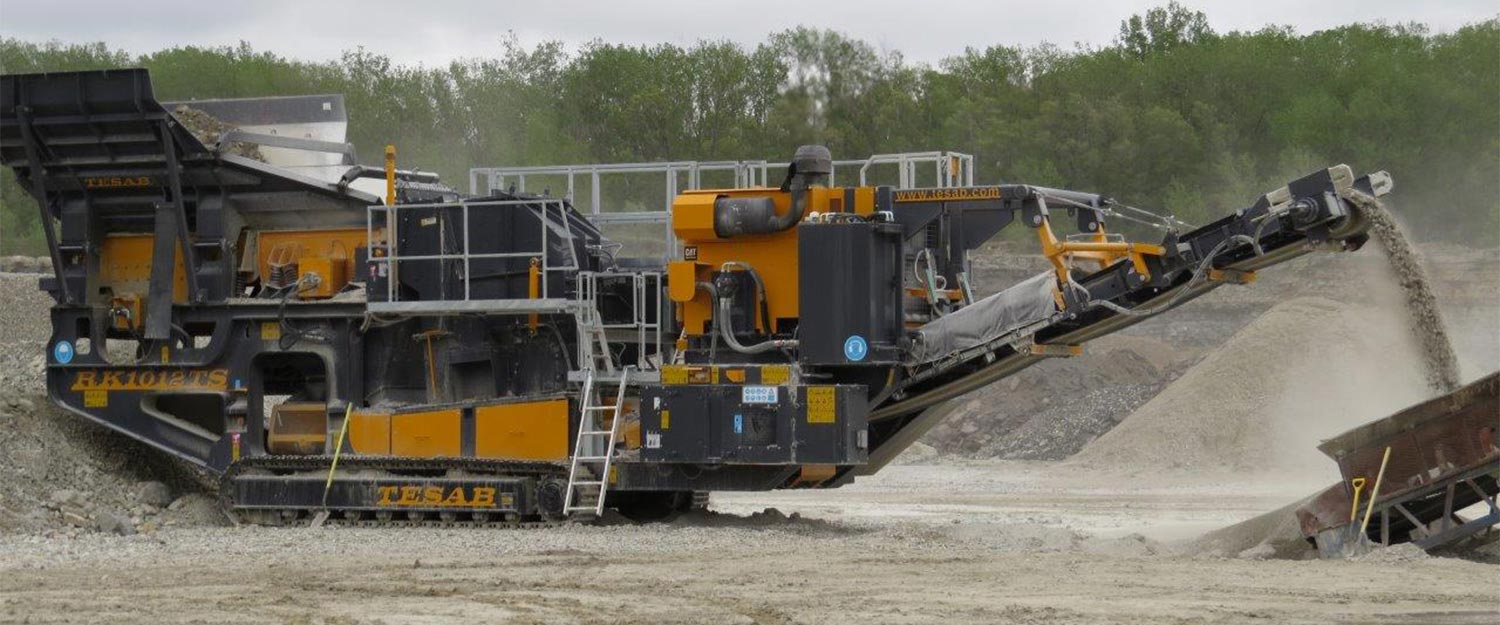

Tesab 1012TS track-mounted impact crusher
A heavy duty tracked impact crusher for primary or secondary crushing stages
The Tesab 1012TS track-mounted impact crusher can be fed with large rocks and produces consistent end product with high quality.
The crusher fits into the primary and secondary crushing stages as a standalone unit or integrated in between other mobile crushing and screening units.
Features
- up to 350+ tonnes per hour depending on the density of the material and crusher settings
- superior cubical shape output
- fitting into primary and secondary applications
- its new design allows quick setup and easy transportation between operating sites
Performance Specifications
| Production Rate | Max Feed Size | Reduction Ratio | Engine Size | Prescreen |
| 350+ TPH* | 500 mm | up to 20:1 | CAT C13 (Tier 3 / Tier 4) | Yes |
* Depending on the density of the material and settings of the crusher
Dimension Specifications in mm
| For transportation | In operation | Weight (est.) | |||
| Height | Width | Length | Width | Length | in kg |
| 3.810 | 3.330 | 14.250 | 5.850 | 15.700 | 45.200 |
