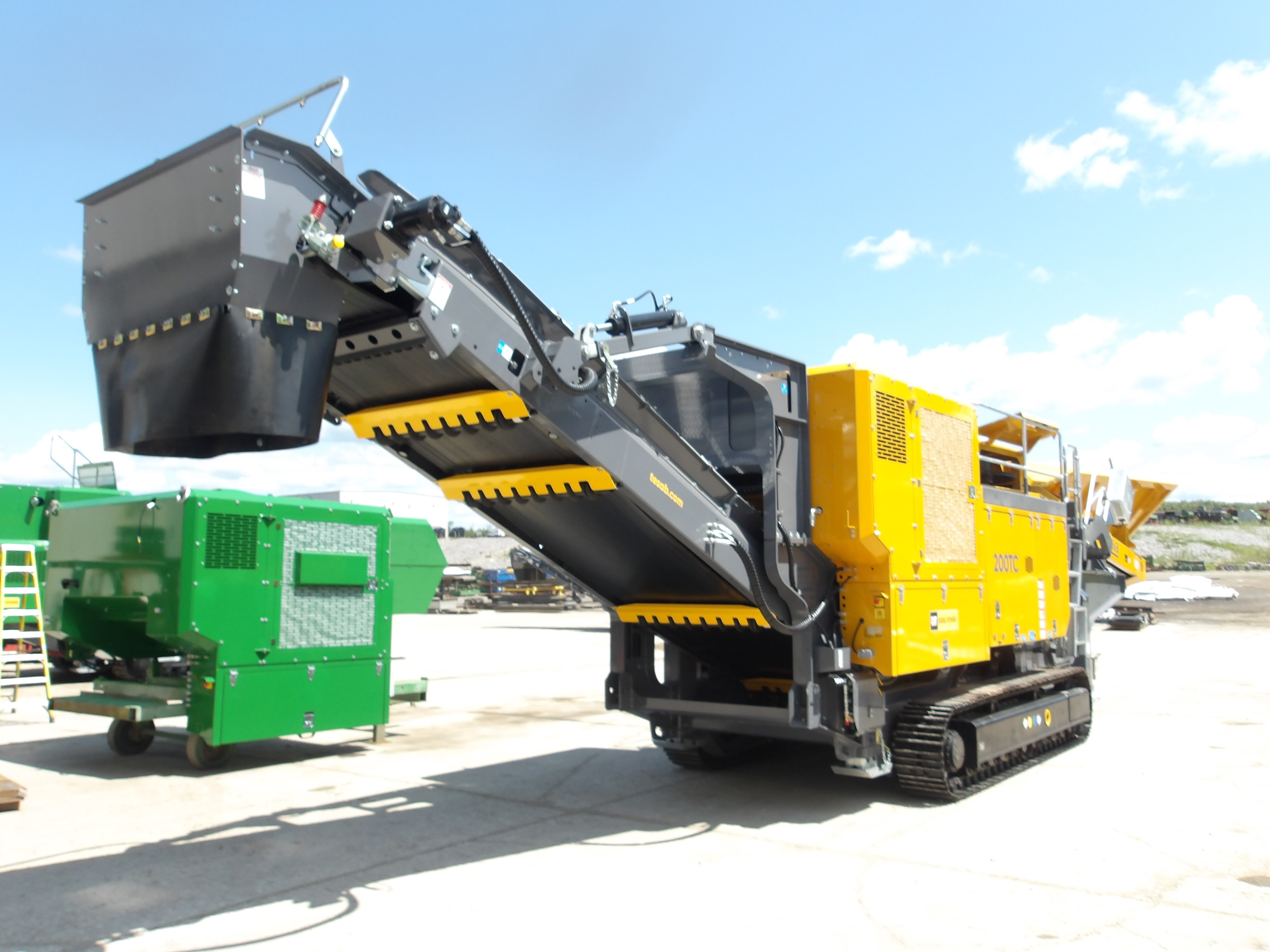

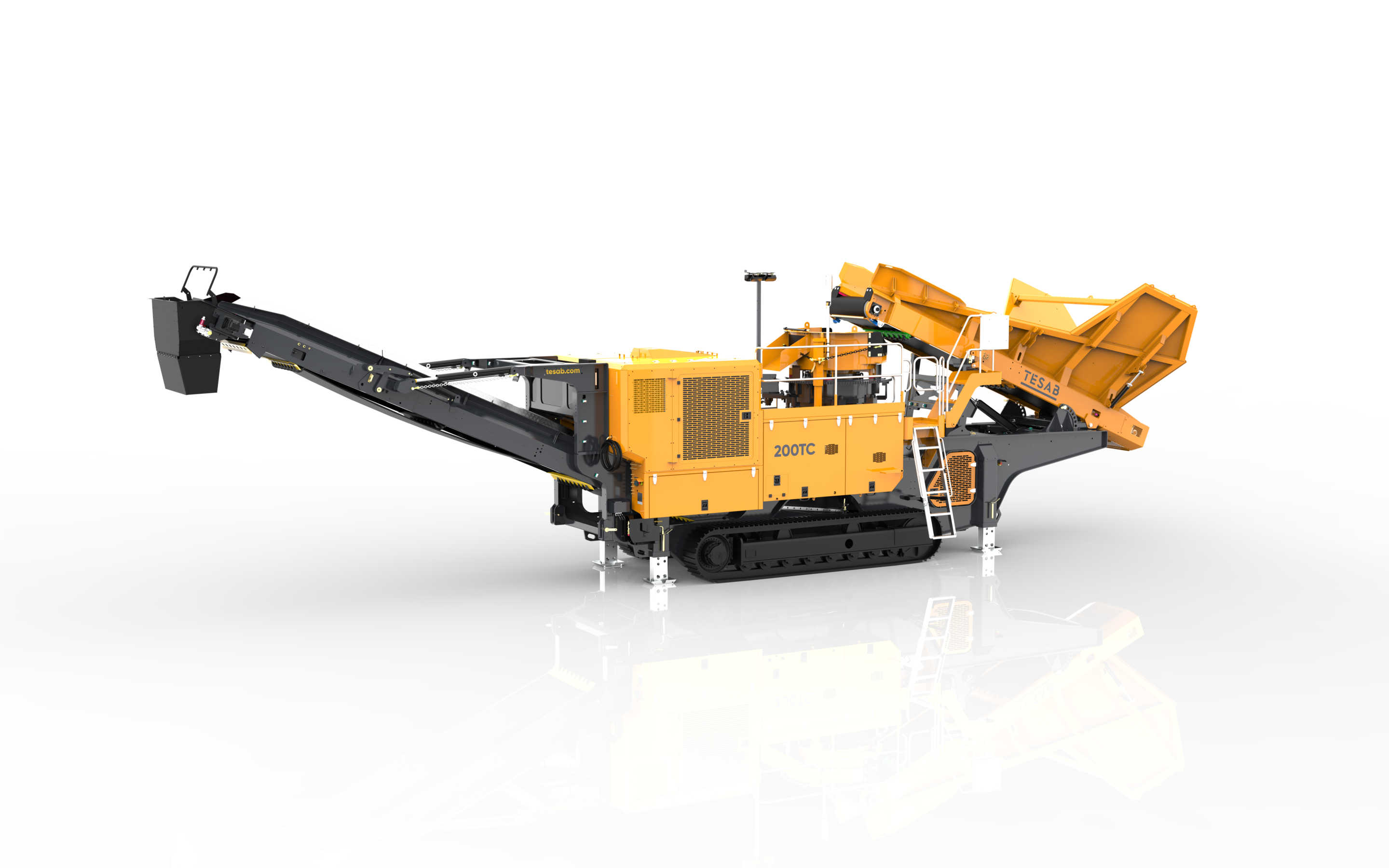

Tesab 200TC heavy duty compact cone crusher

Superior performance and high capacity

The standard features found on the new Tesab compact and portable 200TC cone crusher go well beyond what is typically expected, including unrivalled ground level access, full-size MC200 cone, powerful engine, efficient conveyor design, and continuous load and material monitoring.

The design of Tesab mobile cone crushers aims to achieve exceptional performance, maximizing capacity, enhancing product quality, ensuring versatility, and optimizing fuel efficiency.

Features

  • MC200 Cone
  • 350Hp (260kW) engine
  • tracked
  • compact footprint for high manouverability and ease of transport
  • high speed, high throw 200Hp cone
  • twin pole over and under metal detector with variable sensitivity
  • unrivaled access from ground level for maintenance and service
  • less than 5 minutes from setup to operation

Performance Specifications

Production Rate* Feed Opening Feeder Belt Width Engine Size Pre Screen
up to 250 TPH  914 mm 1050 mm

350 Hp (260 kW)



* Depending on application

Dimension Specifications in mm

For transportation Main conveyor Weight Crushing chamber
Height Width Length Stockpile Height Belt Width in kg max. Feed Opening
3.400 2.800 16.400  3.314 1200 40.420

185
