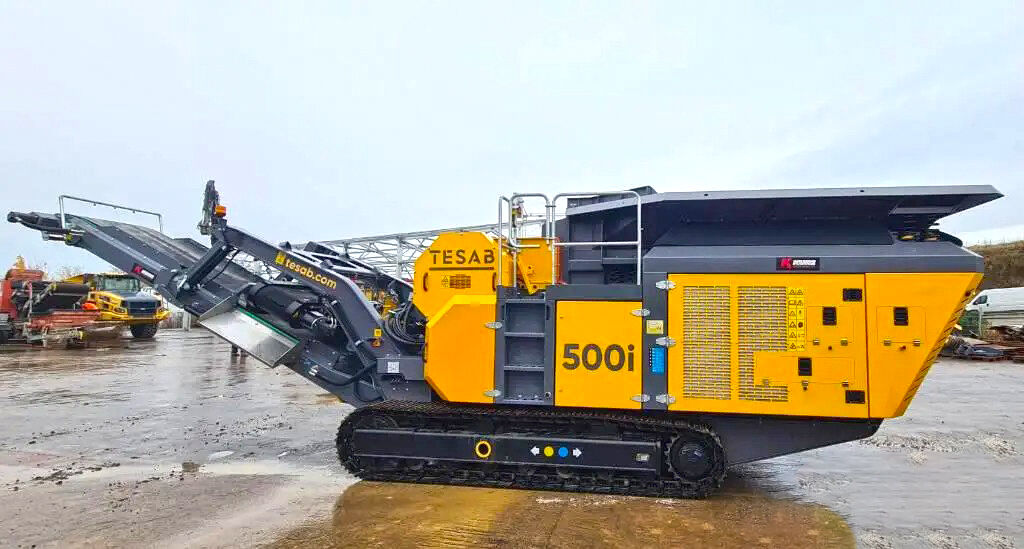

Tesab 500i track-mounted jaw crusher

The perfect solution for projects with small available space but large requirements

Need to crush rock in tight spaces? Meet the Tesab 500i, a powerful yet compact jaw crusher built for jobs like:

  • Recycling construction & demolition debris
  • Turning old asphalt into new roads
  • Creating gravel and other aggregates

This nimble machine maneuvers easily in small areas, even crushing on the go! Plus, its tiny footprint (less than 2.5m wide) makes transport a breeze.

Got even more crushing needs? No problem! The 500i transforms into a recirculating crusher in just one hour, giving you extra crushing power.


  • 890mm x 500mm single toggle jaw
  • Crawler tracks
  • Integrated hydraulic folding stockpiling conveyors
  • I-beam plate fabricated chassis construction
  • Open chassis design for ease of maintenance
  • Fast setup time

Performance Specifications

Production Rate Max Feed Size Reduction Ratio Engine Size Prescreen
110 TPH* 500 mm  up to 4:1 218Hp 162kW Yes

* Depending on the density of the material and settings of the crusher

Dimension Specifications in mm

For transportation In operation Weight (est.)
Height Width Length Width Length in kg
2.980 2.490 9.320  2.490 11.300  23.850
