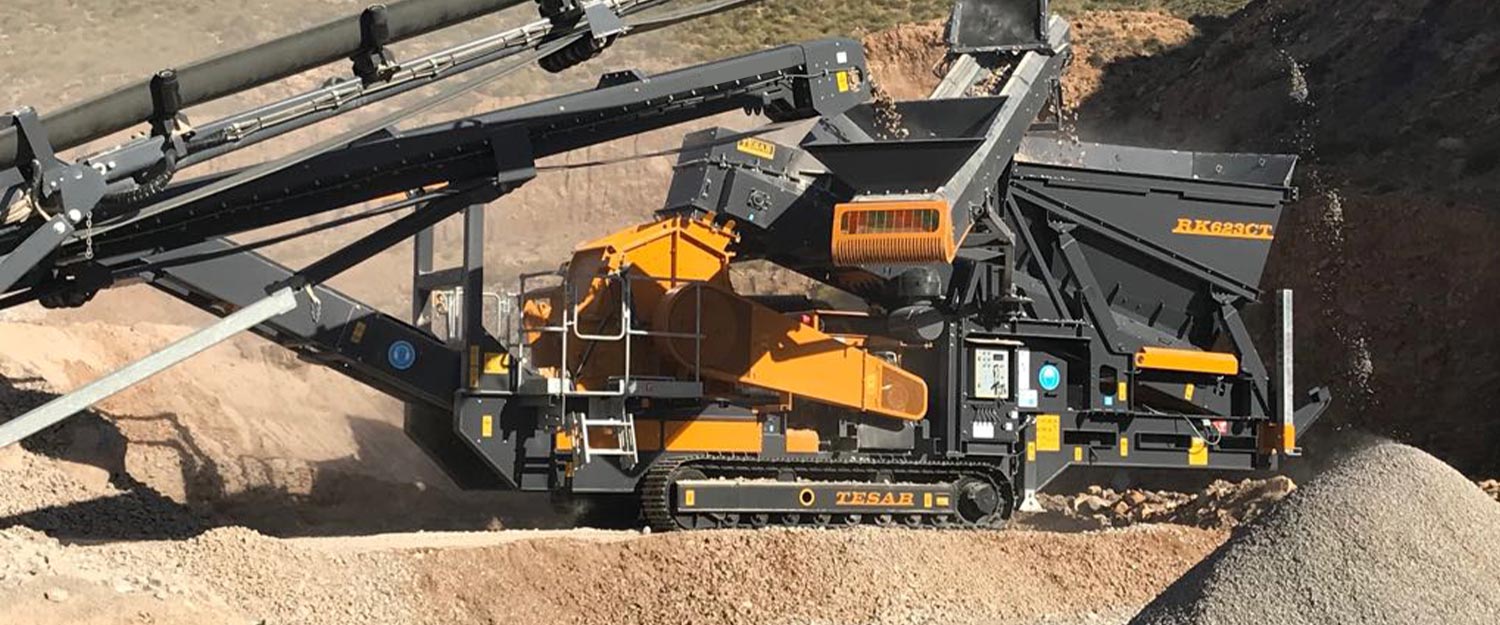

Tesab 623CT track-mounted impact crusher

Designed to produce top quality cubical shape end products at economical cost per ton

The Tesab 623CT track-mounted impact crusher produces extremely good cubical shape end products and achieves high reduction rates. It is a reliable and consistent machine with only few opponents out there.

The crusher fits into the secondary and tertiary crushing stages as a standalone unit or integrated in between other crushing and screening units.


  • up to 150+ tonnes per hour depending on the density of the material and crusher settings
  • excellent cubical shape output
  • fitting into secondary and tertiary applications
  • available options: tipping grid and pre-screen

Performance Specifications

Production Rate Max Feed Size Reduction Ratio Engine Size Prescreen
150 TPH* 200 mm up to 20:1 CAT C9 (Tier 3 / Tier 4) Yes

* Depending on the density of the material and settings of the crusher

Dimension Specifications in mm

For transportation In operation Weight (est.)
Height Width Length Width Length in kg
3.400 2.900 15.000 2.900 16.130 26.350
